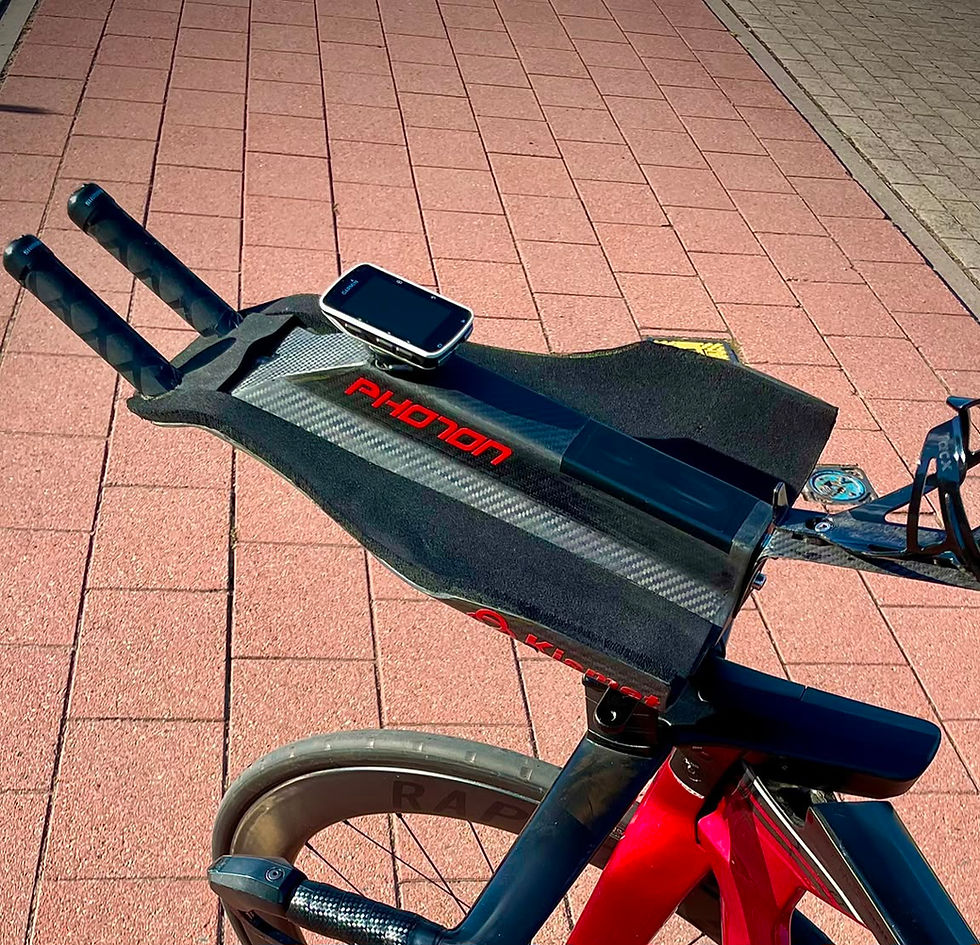

Mono Cockpit for Triathalon

24cm Wide Photon is 370mm to 440mm in length

28cm Wide Photon is 380mm long

20cmWide Photon is 400mm Long

All 3 Photons can be either 20cm, 24cm or 28cm in width

Each come with 8mm Foams and weigh under 500grams (roughly 454g)

Rear bolt on BDA mount 25 degrees from ground level

Centre mono mount bolt sizes are needed ie 5, 6  or 8mm for slot to be routed

Duel mount will require accurate specification from the centre line to hole centres for pre drilling

Duel mount has option for customer to drill own holes

Garmin or Wahoo mounts

Hydration tube internal routing Y/N

Adjustable hand grips for tow inwards with non slip covering

Di2/Sram/Campag all electric systems configured

Can locate directly onto original armrest positions or risers/wedges and Mono centre mount

Fastenings all included need to stipulate 5 or 6mm
